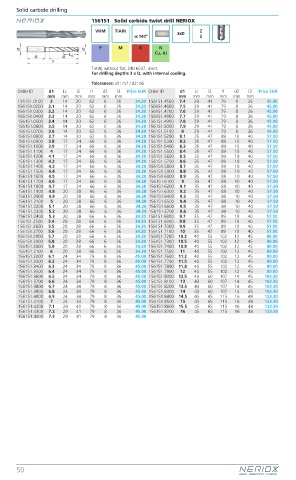

P. 52
Solid carbide drilling
156151 Solid carbide twist drill NERIOX
VHM TiAIN 3xD Z
α: 140º 2
P M K N
Cu, AI
TiAIN, without flat, DIN 6537, short.
For drilling depths 3 x D, with internal cooling.
Tolerances: d1: m7 / d2: h6
Order ID d1 Lc l2 l1 d2 l3 Price EUR Order ID d1 Lc l2 l1 d2 l3 Price EUR
mm mm mm mm mm mm mm mm mm mm mm mm
156151.0100 3 14 20 62 6 36 34.20 156151.4500 7.4 29 41 79 8 36 45.00
156151.0200 3.1 14 20 62 6 36 34.20 156151.4600 7.5 29 41 79 8 36 45.00
156151.0300 3.2 14 20 62 6 36 34.20 156151.4700 7.6 29 41 79 8 36 45.00
156151.0400 3.3 14 20 62 6 36 34.20 156151.4800 7.7 29 41 79 8 36 45.00
156151.0500 3.4 14 20 62 6 36 34.20 156151.4900 7.8 29 41 79 8 36 45.00
156151.0600 3.5 14 20 62 6 36 34.20 156151.5000 7.9 29 41 79 8 36 45.00
156151.0700 3.6 14 20 62 6 36 34.20 156151.5100 8 29 41 79 8 36 45.00
156151.0800 3.7 14 20 62 6 36 34.20 156151.5200 8.1 35 47 89 10 40 57.50
156151.0900 3.8 17 24 66 6 36 34.20 156151.5300 8.2 35 47 89 10 40 57.50
156151.1000 3.9 17 24 66 6 36 34.20 156151.5400 8.3 35 47 89 10 40 57.50
156151.1100 4 17 24 66 6 36 34.20 156151.5500 8.4 35 47 89 10 40 57.50
156151.1200 4.1 17 24 66 6 36 34.20 156151.5600 8.5 35 47 89 10 40 57.50
156151.1300 4.2 17 24 66 6 36 34.20 156151.5700 8.6 35 47 89 10 40 57.50
156151.1400 4.3 17 24 66 6 36 34.20 156151.5800 8.7 35 47 89 10 40 57.50
156151.1500 4.4 17 24 66 6 36 34.20 156151.5900 8.8 35 47 89 10 40 57.50
156151.1600 4.5 17 24 66 6 36 34.20 156151.6000 8.9 35 47 89 10 40 57.50
156151.1700 4.6 17 24 66 6 36 34.20 156151.6100 9 35 47 89 10 40 57.50
156151.1800 4.7 17 24 66 6 36 34.20 156151.6200 9.1 35 47 89 10 40 57.50
156151.1900 4.8 20 28 66 6 36 34.20 156151.6300 9.2 35 47 89 10 40 57.50
156151.2000 4.9 20 28 66 6 36 34.20 156151.6400 9.3 35 47 89 10 40 57.50
156151.2100 5 20 28 66 6 36 34.20 156151.6500 9.4 35 47 89 10 40 57.50
156151.2200 5.1 20 28 66 6 36 34.20 156151.6600 9.5 35 47 89 10 40 57.50
156151.2300 5.2 20 28 66 6 36 34.20 156151.6700 9.6 35 47 89 10 40 57.50
156151.2400 5.3 20 28 66 6 36 34.20 156151.6800 9.7 35 47 89 10 40 57.50
156151.2500 5.4 20 28 66 6 36 34.20 156151.6900 9.8 35 47 89 10 40 57.50
156151.2600 5.5 20 28 66 6 36 34.20 156151.7000 9.9 35 47 89 10 40 57.50
156151.2700 5.6 20 28 66 6 36 34.20 156151.7100 10 35 47 89 10 40 57.50
156151.2800 5.7 20 28 66 6 36 34.20 156151.7200 10.2 40 55 102 12 45 80.00
156151.2900 5.8 20 28 66 6 36 34.20 156151.7300 10.5 40 55 102 12 45 80.00
156151.3000 5.9 20 28 66 6 36 34.20 156151.7400 10.8 40 55 102 12 45 80.00
156151.3100 6 20 28 66 6 36 34.20 156151.7500 11 40 55 102 12 45 80.00
156151.3200 6.1 24 34 79 8 36 45.00 156151.7600 11.2 40 55 102 12 45 80.00
156151.3300 6.2 24 34 79 8 36 45.00 156151.7700 11.5 40 55 102 12 45 80.00
156151.3400 6.3 24 34 79 8 36 45.00 156151.7800 11.8 40 55 102 12 45 80.00
156151.3500 6.4 24 34 79 8 36 45.00 156151.7900 12 40 55 102 12 45 80.00
156151.3600 6.5 24 34 79 8 36 45.00 156151.8000 12.5 43 60 107 14 45 103.30
156151.3700 6.6 24 34 79 8 36 45.00 156151.8100 13 43 60 107 14 45 103.30
156151.3800 6.7 24 34 79 8 36 45.00 156151.8200 13.5 43 60 107 14 45 103.30
156151.3900 6.8 24 34 79 8 36 45.00 156151.8300 14 43 60 107 14 45 103.30
156151.4000 6.9 24 34 79 8 36 45.00 156151.8400 14.5 45 65 115 16 48 123.30
156151.4100 7 24 34 79 8 36 45.00 156151.8500 15 45 65 115 16 48 123.30
156151.4200 7.1 29 41 79 8 36 45.00 156151.8600 15.5 45 65 115 16 48 123.30
156151.4300 7.2 29 41 79 8 36 45.00 156151.8700 16 45 65 115 16 48 123.30
156151.4400 7.3 29 41 79 8 36 45.00
50
